How Does a Digital X-Ray Machine Work? Technology, Process and Benefits

Introduction

Digital X-ray imaging is widely used in modern healthcare to help doctors examine internal body structures and support medical diagnosis. Unlike traditional film-based X-ray systems, a Digital X-Ray Machine captures images electronically, allowing them to be viewed on a compatible computer workstation.

But how does a digital X-ray machine work? The process involves generating X-rays, passing them through the body, capturing the transmitted radiation with a detector and converting the collected data into a digital image.

Understanding Digital X-Ray Technology can help healthcare professionals, hospital administrators and medical equipment buyers better understand how digital radiography systems operate.

What Is Digital X-Ray Technology?

Digital X-Ray Technology is a medical imaging method that uses electronic detectors to capture X-ray images. The resulting digital images can be displayed, processed and stored using compatible imaging software and systems.

A typical Digital Radiography System includes an X-ray generator, X-ray tube, digital detector and image acquisition workstation. Depending on the system, additional components may include positioning equipment, image-processing software and connectivity features.

Digital radiography is commonly used for examinations involving bones, joints, the chest and other body regions, according to the clinical requirements and the equipment used.

How Does a Digital X-Ray Machine Work?

A Digital X-Ray Machine works through several connected stages, from generating X-rays to displaying the final image.

1. X-Ray Generation

The process begins inside the X-ray tube. Electrical energy is used to generate X-rays, which are directed towards the body part being examined.

The exposure settings are selected according to the examination, patient characteristics and clinical protocol.

2. X-Rays Pass Through the Body

When X-rays pass through the body, different tissues absorb or attenuate the radiation to different degrees.

For example, bones generally attenuate more X-rays than many soft tissues. These differences help create the contrast needed to distinguish structures in the resulting image.

3. The Digital Detector Captures the Image Data

After passing through the body, the remaining X-rays reach the detector.

A Digital X-Ray Detector converts the incoming X-ray information into an electronic signal. Depending on the detector technology, this conversion may occur directly or through an intermediate process involving light.

The detector design and performance influence image acquisition and the overall imaging workflow.

4. The System Processes the Image

The image acquisition system processes the detector data to produce a viewable radiographic image.

Digital X-Ray Image Processing can adjust image presentation, such as brightness and contrast, according to the system's software and settings. Processing does not replace correct exposure, patient positioning or appropriate clinical interpretation.

5. The Image Appears on the Workstation

Once the image is generated, it can be displayed on a compatible workstation for review by qualified healthcare professionals.

Depending on the system configuration, images may also be transferred to a Picture Archiving and Communication System (PACS) or other compatible medical imaging systems.

This electronic workflow supports image storage, retrieval and sharing where the required connectivity is available.

What Is a Digital X-Ray Detector?

A Digital X-Ray Detector is a key component of a digital radiography system. It captures the X-ray information that is used to create the image.

Two common detector approaches are direct-conversion and indirect-conversion technology.

Direct-Conversion Detectors

Direct-conversion detectors convert X-ray energy directly into an electrical signal. Amorphous selenium is one material used in this type of detector.

Indirect-Conversion Detectors

Indirect-conversion detectors first convert X-rays into visible light using a scintillator. Photodetectors then convert that light into an electrical signal.

Cesium iodide and gadolinium oxysulfide are examples of scintillator materials used in some detector designs.

The appropriate detector depends on the system design, clinical applications, performance requirements and manufacturer specifications.

What Is a Flat Panel Detector in Digital Radiography?

A Flat Panel Detector is a type of electronic detector used in many digital radiography systems. It captures X-ray information across a detector panel and converts it into data that can be used to generate a digital image.

Flat panel detectors are available in different sizes and configurations. Some systems use wired detectors, while others support wireless detector options.

When evaluating a Digital X-Ray Flat Panel Detector, important considerations include detector size, compatibility, image acquisition workflow, durability, handling and maintenance requirements.

The detector must be compatible with the specific X-ray system in which it will be used.

Digital Radiography vs Traditional Film X-Ray

Digital radiography differs from conventional film-based radiography mainly in how images are captured, processed and managed.

Image Capture

Traditional film systems record the image on radiographic film. Digital radiography systems capture image data electronically using a digital detector.

Image Viewing

Film images require film processing and physical viewing. Digital X-ray images can be displayed on a compatible workstation after acquisition and processing.

Image Storage

Traditional film requires physical storage. Digital images can be stored electronically, subject to the facility's storage systems, policies and applicable requirements.

Image Sharing

Physical films must be transported or copied for sharing. Digital images can be transferred through compatible imaging systems and networks when configured appropriately.

The best approach depends on the facility's existing infrastructure, clinical needs, budget and workflow.

What Is the Difference Between DR and CR X-Ray Systems?

Digital Radiography (DR) and Computed Radiography (CR) are two approaches to producing digital X-ray images.

A DR system uses a digital detector to capture image data electronically. A CR system uses a photostimulable imaging plate that must be processed through a separate reader.

The main difference is the image acquisition process.

DR systems can support direct electronic image capture, while CR systems include an additional plate-reading step. The practical implications depend on the equipment, workflow and clinical setting.

Healthcare facilities comparing DR X-Ray Systems and CR X-Ray Systems should consider their existing equipment, examination volume, image acquisition process and long-term operating requirements.

Benefits of Digital X-Ray Imaging

Digital X-Ray Imaging offers several workflow advantages when the equipment is properly configured and used.

• Electronic image viewing: Images can be displayed on compatible workstations after acquisition.

• Digital storage: Images can be stored using suitable medical imaging systems.

• Image processing: Available software can adjust image presentation for review.

• Workflow integration: Compatible systems can support electronic image transfer and archiving.

• Reduced dependence on film: Digital workflows do not require conventional radiographic film processing.

• Flexible image access: Authorized staff may access stored images through compatible systems and approved workflows.

Actual benefits depend on the equipment, software, training, connectivity and clinical workflow. Digital systems still require appropriate radiation protection and exposure optimization.

Where Are Digital X-Ray Machines Used?

A Digital X-Ray Machine can be used in a variety of healthcare settings, depending on its configuration and intended applications.

Hospitals

Digital radiography systems can support general radiographic examinations across suitable hospital departments.

Diagnostic Imaging Centres

Diagnostic centres use digital X-ray equipment to capture and manage radiographic images for examinations requested by qualified healthcare professionals.

Emergency Departments

Digital X-ray systems may support imaging when prompt assessment is clinically indicated.

Orthopaedic Clinics

X-ray imaging is commonly used to evaluate bones and joints, subject to clinical requirements.

Intensive Care Units

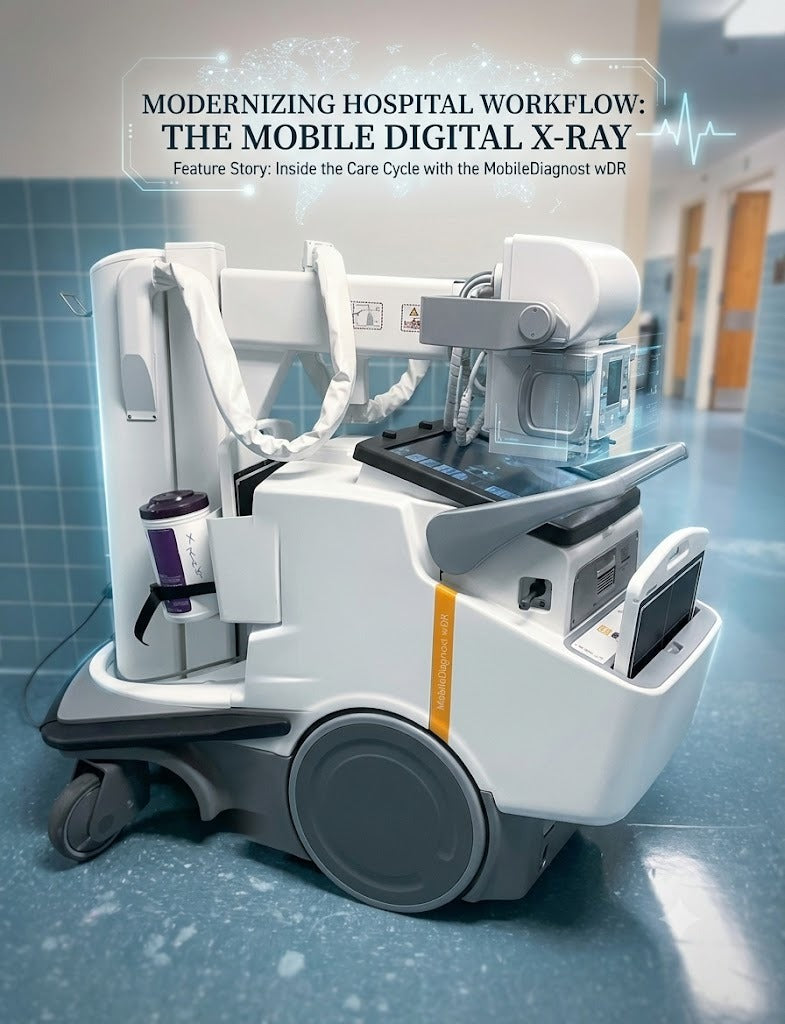

Mobile digital radiography systems can support bedside imaging when moving a patient to a fixed radiography room is not practical.

Equipment selection and use should follow the manufacturer's instructions, clinical protocols and applicable radiation safety requirements.

Factors That Influence Digital X-Ray Image Quality

The quality of a digital radiographic image depends on several factors, not only the detector.

Patient Positioning

Correct positioning helps capture the anatomy required for the examination and can reduce the need for repeat imaging.

Exposure Parameters

Appropriate exposure settings are essential for obtaining diagnostic images while following radiation protection and dose optimization principles.

Detector Performance

Detector characteristics, calibration and system condition can influence image acquisition and quality.

Motion and Patient Cooperation

Movement during exposure can cause image blur. Appropriate positioning and examination technique help manage motion-related problems.

Image Processing

Image-processing software influences how the captured data is displayed. Processing cannot recover information that was never captured adequately.

Qualified radiography professionals should select exposure parameters and evaluate images according to clinical protocols.

Frequently Asked Questions

How does a digital X-ray machine work?

A digital X-ray machine generates X-rays, directs them through the body and uses a digital detector to capture the transmitted radiation. The system converts the detector data into an image that can be viewed on a compatible workstation.

What is digital radiography?

Digital radiography is a medical imaging method that uses electronic detectors to capture X-ray images without conventional film-based image recording.

What does a digital X-ray detector do?

A digital X-ray detector captures the X-ray information after it passes through the body and converts it into electronic data used to create the radiographic image.

What is a flat panel detector?

A flat panel detector is an electronic detector used in many digital radiography systems to capture X-ray image data across a panel.

What is the difference between DR and CR?

DR systems use digital detectors for electronic image capture. CR systems use imaging plates that are processed through a separate reader.

Are digital X-ray images stored electronically?

Yes. Digital X-ray images can be stored electronically using compatible image acquisition software, PACS or other medical imaging storage systems.

Does digital X-ray eliminate radiation exposure?

No. Digital radiography still uses ionizing radiation. Examinations must follow appropriate radiation safety procedures and exposure optimization practices.

Conclusion

Understanding How a Digital X-Ray Machine Works helps explain the role of X-ray generation, digital detectors, image processing and electronic image storage in modern medical imaging.

From the Digital X-Ray Detector to the Flat Panel Detector and image acquisition workstation, each component contributes to the digital radiography workflow. Understanding these components also helps healthcare facilities evaluate Digital X-Ray Technology, DR X-Ray Systems and other medical imaging solutions.

For healthcare providers considering digital radiography, the most appropriate system depends on clinical requirements, technical specifications, compatibility, staff training and radiation safety practices.
