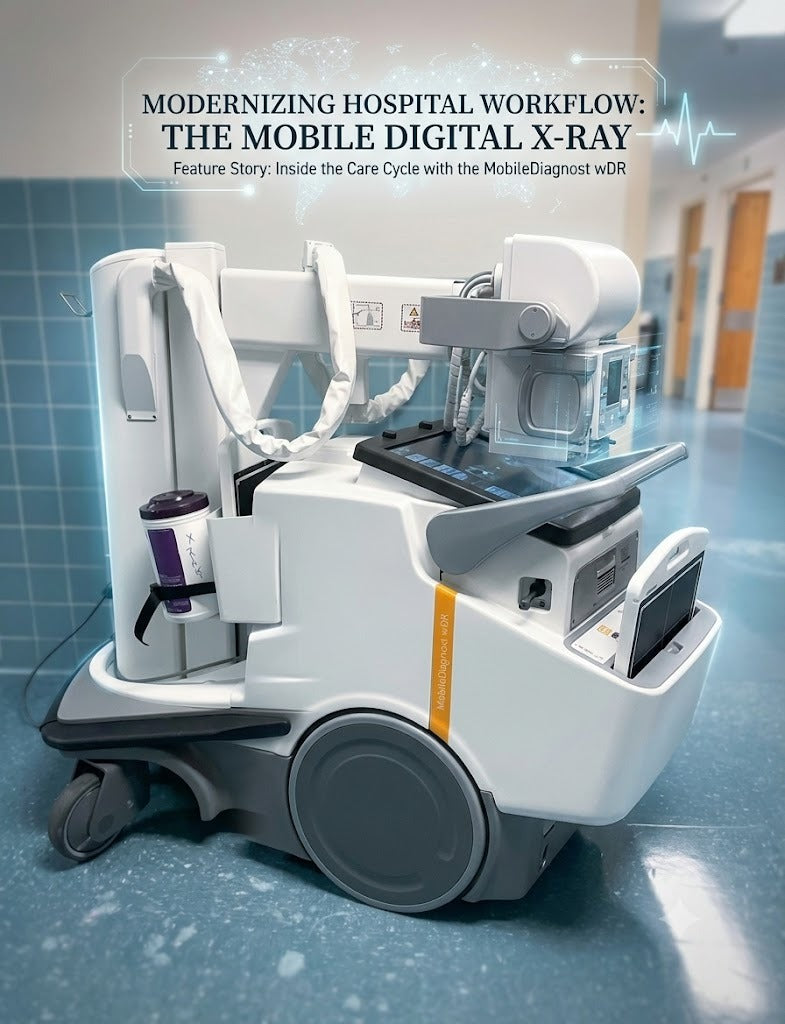

Digital X-Ray Machine Detectors Explained: Types, Compatibility, and Upgrade Considerations

A digital X-ray machine is an important part of modern medical imaging, but the detector used in the system also plays a major role in image acquisition, workflow, and equipment compatibility. Understanding the different detector technologies can help hospitals, diagnostic centers, and medical equipment buyers make more informed purchasing decisions.

Digital radiography systems use digital image receptors to capture X-ray information and convert it into images that can be processed and reviewed electronically. Depending on the system, this may involve computed radiography (CR) imaging plates or direct digital radiography (DR) detectors.

In this guide, we explain the main types of digital X-ray detectors, how they differ, what affects detector compatibility, and what healthcare facilities should evaluate before purchasing a new system or upgrading existing equipment.



What Is a Digital X-Ray Machine Detector?

A digital X-ray machine detector is a component that captures the X-ray pattern passing through a patient and converts the information into a digital image.

During an X-ray examination, different tissues absorb different amounts of radiation. The remaining X-rays reach the detector, which converts the detected signal into electronic data. The imaging system processes this data and displays the resulting image on a workstation.

A typical digital radiography workflow includes:

1. An X-ray generator produces the required radiation.
2. X-rays pass through the area being examined.
3. A detector captures the transmitted X-ray information.
4. The acquisition system processes the signal into a digital image.
5. The image is displayed, stored, and transferred through compatible imaging software.

The exact workflow depends on the system configuration and the detector technology used.

What Are the Main Types of Digital X-Ray Machine Detectors?

Digital X-ray machines imaging commonly uses two types of detector systems: computed radiography and direct digital radiography.

1. Computed Radiography (CR)

Computed radiography uses a reusable imaging plate housed in a cassette. After an X-ray exposure, the cassette is placed in a specialized reader that scans the plate and converts the stored image information into a digital image.

Key characteristics of CR systems:

• Use imaging plates and compatible cassettes.
• Require a separate image-reading step.
• Can be suitable for facilities using cassette-based workflows.
• May offer a transition from film-based imaging without replacing the entire X-ray system, depending on the existing setup.

CR can be a practical option for some facilities, but the additional plate-handling and reading steps should be considered when evaluating workflow requirements.

2. Direct Digital Radiography (DR)

Direct digital radiography uses an electronic detector to capture X-ray information and transfer it to an image acquisition system.

Many DR systems use flat panel detectors. Depending on the equipment, the detector may be integrated into the X-ray system or designed as a removable wired or wireless panel.

Key characteristics of DR systems:

• Capture images through an electronic detector.
• Can provide images for review shortly after exposure.
• Support digital image storage and compatible image-management workflows.
• May be integrated into fixed-room or mobile X-ray systems.

The actual performance and workflow depend on the detector, generator, acquisition software, system configuration, and operating procedures.

Wired vs. Wireless Digital X-Ray Machines Detectors

Digital X-ray machines detectors may also be classified according to how they connect to the imaging system.

Wired Detectors

Wired detectors connect to compatible equipment through a physical cable.

Potential advantages include a direct connection and reduced dependence on wireless communication. However, cables can affect positioning, handling, and movement around the examination area.

Wireless Detectors

Wireless detectors transmit image data through a compatible wireless connection. Some models use rechargeable batteries and can be moved between compatible imaging setups.

Potential advantages include greater flexibility in positioning and fewer physical cables during examinations.

Before choosing a wireless detector, check its battery requirements, communication protocol, charging arrangements, image-transfer workflow, and compatibility with the intended X-ray equipment.

Wireless capability alone does not guarantee that a detector will work with every digital X-ray machine.

How Does Detector Technology Affect Image Quality?

Image quality depends on several interacting factors, and the detector is only one part of the complete imaging system.

Detector Resolution

Spatial resolution describes the system's ability to distinguish small structures that are close together. Detector pixel size and design can influence resolution, but pixel size alone does not determine overall image quality.

Signal-to-Noise Performance

Noise can affect the visibility of details in an image. Detector characteristics, exposure conditions, electronic components, and image processing all influence the final result.

Detective Quantum Efficiency (DQE)

Detective quantum efficiency describes how effectively a detector converts incident X-ray information into a useful image signal relative to noise. It can help compare detector performance under specified testing conditions.

DQE should be assessed alongside other technical specifications rather than treated as the only measure of image quality.

Image Processing

Acquisition software and image-processing algorithms influence how images are displayed and reviewed. Processing cannot reliably recover every detail that was not captured during acquisition, so appropriate equipment selection and operating protocols remain important.

For meaningful comparisons, buyers should review verified manufacturer specifications and, where possible, standardized performance measurements for the intended application.

Can an Existing X-Ray Machine Be Upgraded to Digital Radiography?

In some cases, an existing X-ray system can be upgraded with a compatible digital detector and image acquisition components instead of purchasing an entirely new system.

However, a detector cannot simply be connected to every conventional X-ray machine.

Before planning an upgrade, evaluate the following factors.

Generator Compatibility

The X-ray generator must support the required operating conditions and interfaces. A qualified technical team should determine whether the existing generator is suitable for the proposed configuration.

Detector and Software Compatibility

The detector must work with the acquisition workstation and relevant software. Image transfer, communication protocols, calibration, and configuration requirements should be confirmed before purchasing components.

Mechanical Integration

The detector must fit the intended bucky tray, table, wall stand, or mobile configuration where applicable. Physical dimensions, mounting arrangements, and positioning requirements can affect installation.

Power and Communication Requirements

Some systems require specific power arrangements, cables, wireless interfaces, or synchronization components. These requirements vary by manufacturer and model.

Safety and Quality Assurance

An upgrade must be evaluated by qualified professionals to confirm that the resulting system meets applicable safety, performance, installation, and quality-control requirements.

A technical assessment before purchasing a detector can help prevent compatibility problems and unexpected installation costs.

What Should Buyers Check Before Purchasing a Digital X-Ray Machine?

When comparing digital X-ray machine equipment, buyers should evaluate the complete system rather than focusing only on the detector.

1. Intended Application

Identify the examinations and clinical environment for which the system will be used. A fixed radiography room, mobile imaging service, and other specialized applications may require different equipment configurations.

2. Detector Specifications

Review the active imaging area, pixel pitch, resolution, detector technology, connectivity, and other specifications relevant to the intended application.

3. System Compatibility

Confirm compatibility between the detector, generator, acquisition workstation, software, and any existing imaging infrastructure.

4. Workflow Requirements

Consider image acquisition, patient positioning, image transfer, storage, and integration with existing systems. Evaluate the practical workflow rather than relying only on advertised acquisition speed.

5. Equipment Condition

For used or refurbished equipment, request information about the unit's condition, service history, included accessories, detector condition, and any known faults.

6. Installation and Technical Support

Confirm the availability of installation assistance, training, maintenance, replacement parts, and technical support. Also check applicable warranty terms.

7. Total Cost of Ownership

The overall cost may include the equipment, detector, software, installation, accessories, maintenance, training, and future component replacement. Compare the complete cost rather than the initial purchase price alone.

Equipment selection should be based on verified specifications, clinical requirements, and advice from qualified imaging and technical professionals.

Frequently Asked Questions

What is the difference between CR and DR in digital X-ray imaging?

CR uses a reusable imaging plate that must be processed by a reader after exposure. DR uses an electronic detector to capture and transfer image information through a digital acquisition workflow.

Are wireless digital X-ray machine detectors compatible with every X-ray machine?

No. Compatibility depends on the detector, generator, acquisition software, communication interfaces, mechanical setup, and manufacturer requirements. Confirm compatibility before purchasing a detector.

Can a conventional digital X-ray machine be converted to digital radiography?

Some systems can be upgraded, but suitability depends on the existing equipment and the proposed components. A qualified technical assessment is necessary before deciding whether an upgrade is practical.

Does a higher detector resolution always mean better image quality?

No. Resolution is one factor among several. Noise performance, detector efficiency, exposure conditions, image processing, and the intended examination also influence image quality.

What should I check when buying a used digital X-ray machine?

Review the equipment's condition, service history, detector performance, system compatibility, included components, software requirements, installation arrangements, warranty terms, and technical support availability.

Final Thoughts

Choosing a digital X-ray machine involves more than comparing prices or detector specifications. Understanding CR and DR technology, wired and wireless configurations, image quality considerations, and system compatibility can help healthcare facilities evaluate equipment more effectively.
